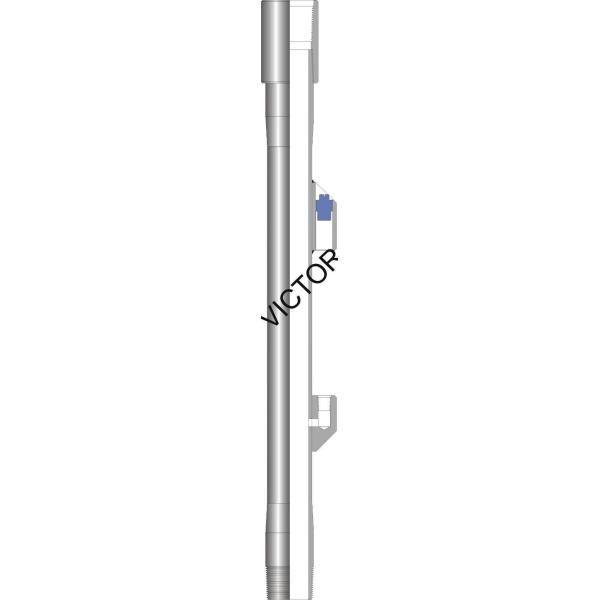

Conventional Gas Lift Mandrels(CM-5---CM-7, CM Series), Surface Testing Pressure 8500psi
The CM series conventional gas lift mandrels are used with the 1" OD or 1.5" OD conventional injection-pressure-operated gas lift valves. This product is equipped with standard NPT threads to assure reliability of sealing.
Features
Technical parameters
| Code | Norms (in.[mm]) | Max. OD (in.[mm]) | ID (in.[mm]) | Gas lift valve | Length (Ft.[m]) |
| CM-5 | 1.900EUE [48.3] | 3.305 [83.9] | 1.61[40.9] | CGLF-100 | 4.0[1.22] |
| 2.063EUE [52.4] | 3.454 [87.7] | 1.751[44.5] | |||
| 2.375EUE [60.3] | 3.937 [100] | 1.995[50.7] | |||
| 2.875EUE [73.0] | 4.489 [114] | 2.441[62.0] | |||
| CM-7 | 2.375EUE [60.3] | 4.531 [115.1] | 1.995[50.7] | CGLF-150 | |
| 2.875EUE [73.0] | 5.084 [129.1] | 2.441[62.0] | |||
| 3.500EUE [88.9] | 5.655 [143.6] | 2.992[76.0] | |||
| 4.500EUE [114.3] | 6.875 [174.6] | 3.958[100.5] |
|
|
